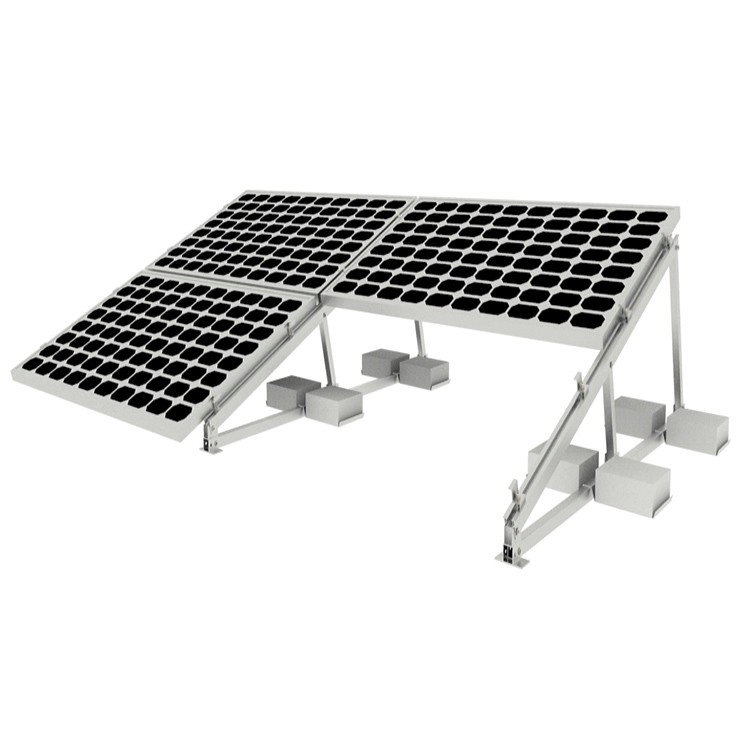

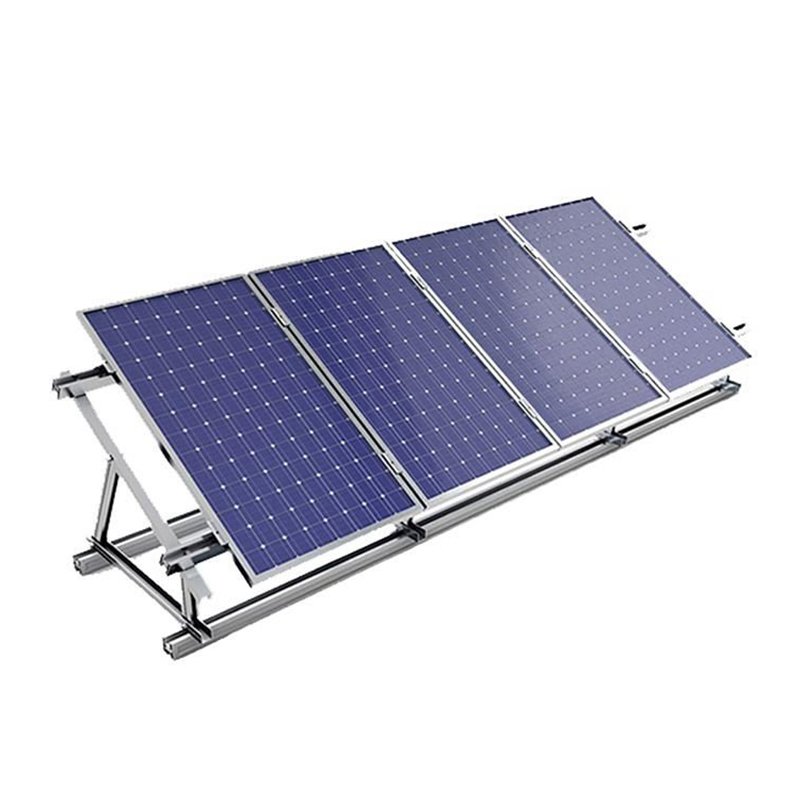

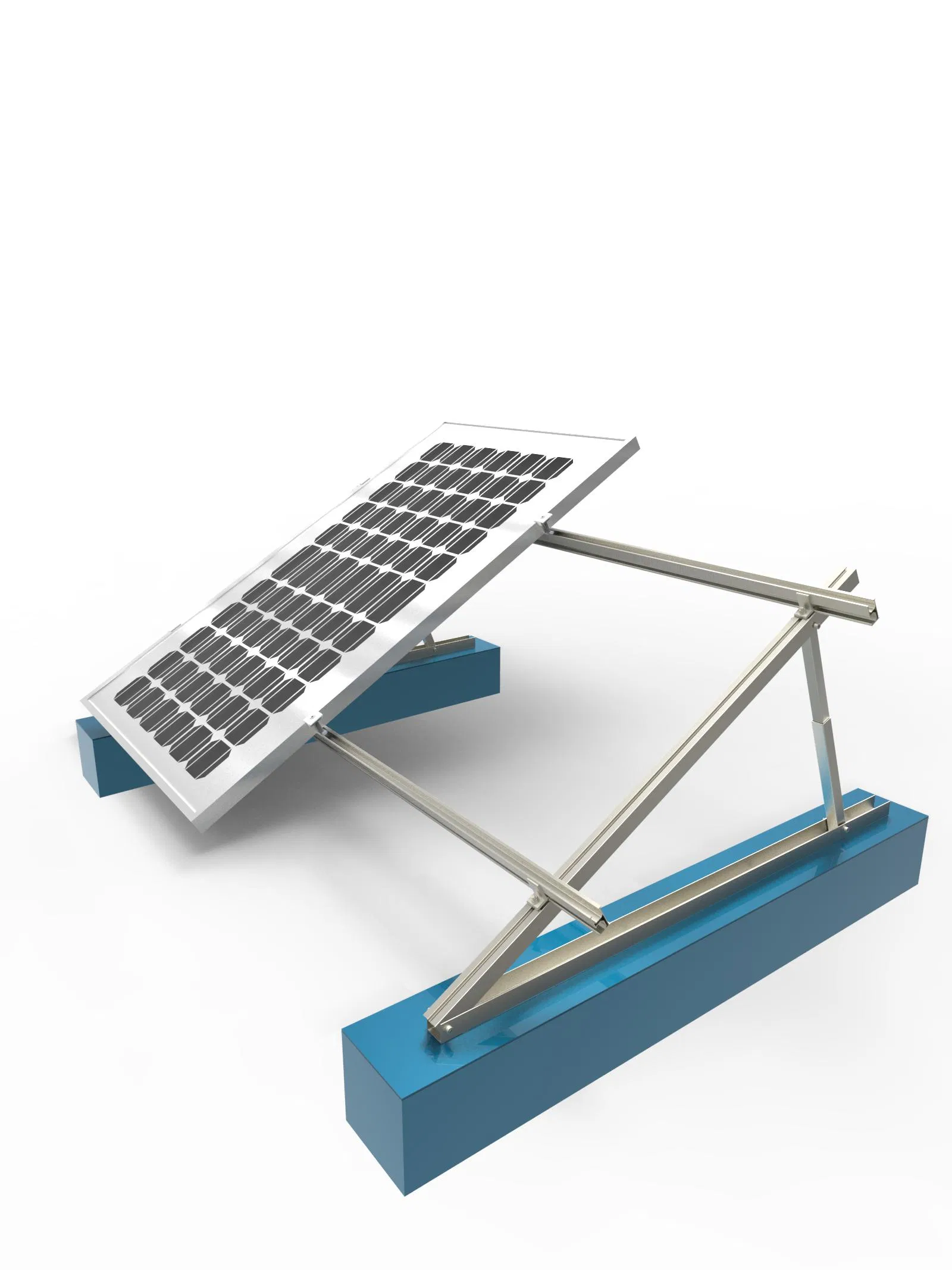

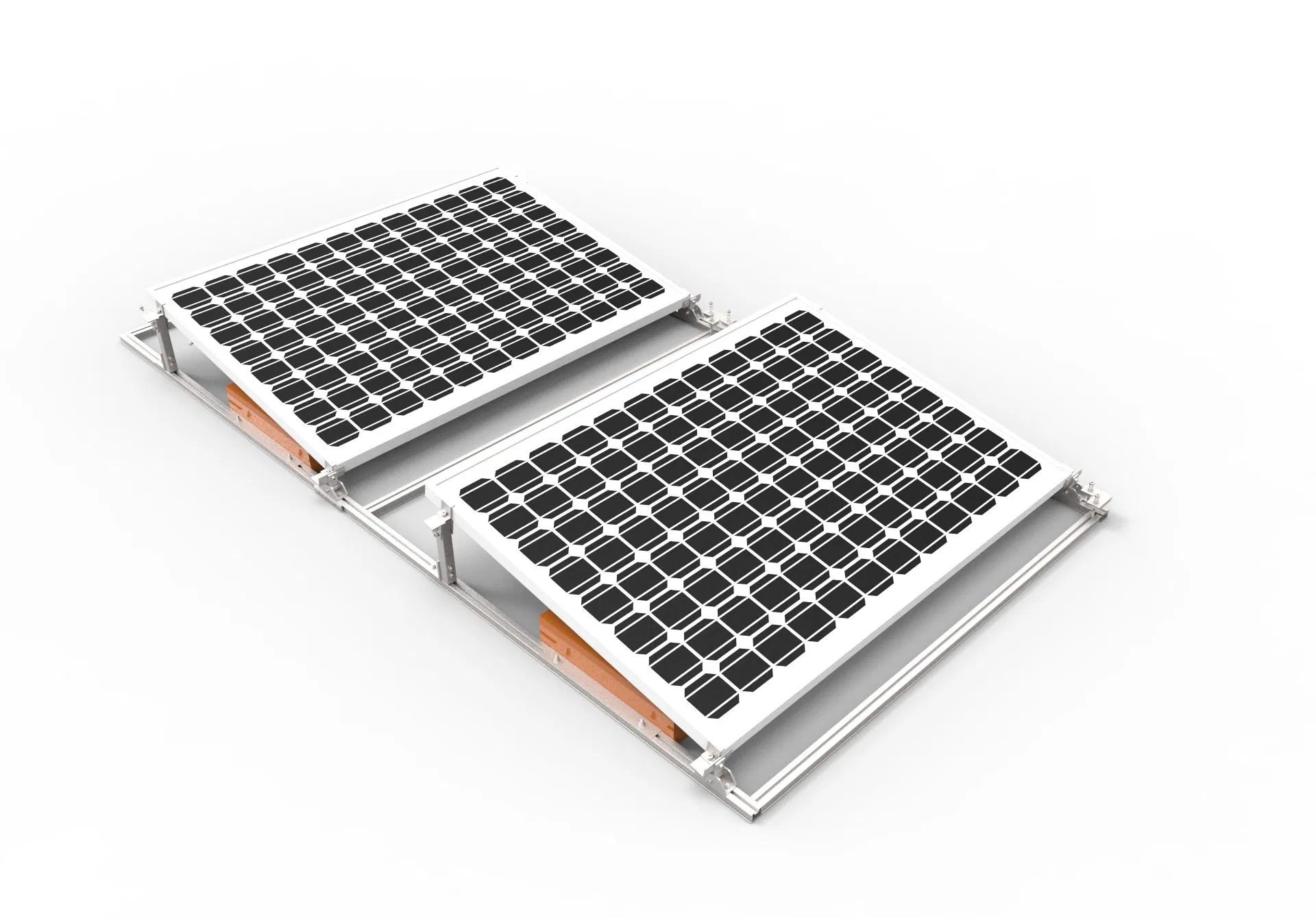

Solar Structure Solar Power System Rooftops PV Mount Systems Solar Panel Kit Flat Roof Bracket Mounting Systems for Home
Solar Structure Solar Power System Rooftops PV Mount Systems Solar Panel Kit Flat Roof Bracket Mounting Systems for Home
Solar Structure Solar Power System Rooftops PV Mount Systems Solar Panel Kit Flat Roof Bracket Mounting Systems for Home
Solar Structure Solar Power System Rooftops PV Mount Systems Solar Panel Kit Flat Roof Bracket Mounting Systems for Home
Solar Structure Solar Power System Rooftops PV Mount Systems Solar Panel Kit Flat Roof Bracket Mounting Systems for Home
1 / 5
Solar Structure Solar Power System Rooftops PV Mount Systems Solar Panel Kit Flat Roof Bracket Mounting Systems for Home
Solar Structure Solar Power System Rooftops PV Mount Systems Solar Panel Kit Flat Roof Bracket Mounting Systems for Home
Solar Structure Solar Power System Rooftops PV Mount Systems Solar Panel Kit Flat Roof Bracket Mounting Systems for Home
Solar Structure Solar Power System Rooftops PV Mount Systems Solar Panel Kit Flat Roof Bracket Mounting Systems for Home
Solar Structure Solar Power System Rooftops PV Mount Systems Solar Panel Kit Flat Roof Bracket Mounting Systems for Home

Solar Structure Solar Power System Rooftops PV Mount Systems Solar Panel Kit Flat Roof Bracket Mounting Systems for Home

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications

Material
Aluminum Alloy
Type
Roof Bracket
Standard
DIN, ASTM/ASME, JIS, En, ISO, as, GB
Finishing
Zinc, HDG, Sandblasting
Certificate
ISO 9001:2015
Delivery Time
7-30 days
Installation Site
Flat Roof, Ground
Wind Load
60m/S
Snow Load
1.6kn/M2
Panel Layout
Portrait or Landscape
Transport Package
20-25kg/Cartons+900kg/Pallets
Specification
SS304, AL6005-T5
Capacity
500ton/Month

Product Overview

Solar Structure Solar Power System Rooftops PV Mount Systems Solar Panel Kit Flat Roof Bracket Mounting Systems for Home

Solar flat roof mounting system is a solar photovoltaic bracket system, suitable for flat roof roofing. The system is mainly composed of solar hook, solar fastener, aluminum rails, galvanized C steel channel and other components, which has the characteristics of simple structure, convenient installation and strong bearing capacity.

✓
Stable Structure
Ability to withstand large wind and snow loads.
✓
Easy Installation
No need for heavy hoisting equipment.
✓
Wide Application
Can be used for various types of flat roof roofing.
✓
Cost Effective
Reusable components to save long-term costs.

Technical Parameters

System Name Solar Flat Roof Mounting System Design Standard AS/NZS 1170, DIN 1055, JIS C8955:2017
Installation Site Flat Roof, Ground Building Code IBC 2009, CBC 2010
Tilt Angle 5-10° Hook Material SUS304
Wind Load 60m/s Fastener SUS304
Snow Load 1.6KN/M² Small Components AL6005-T5 (Anodized)
Applicable Module Framed Warranty 10-year warranty

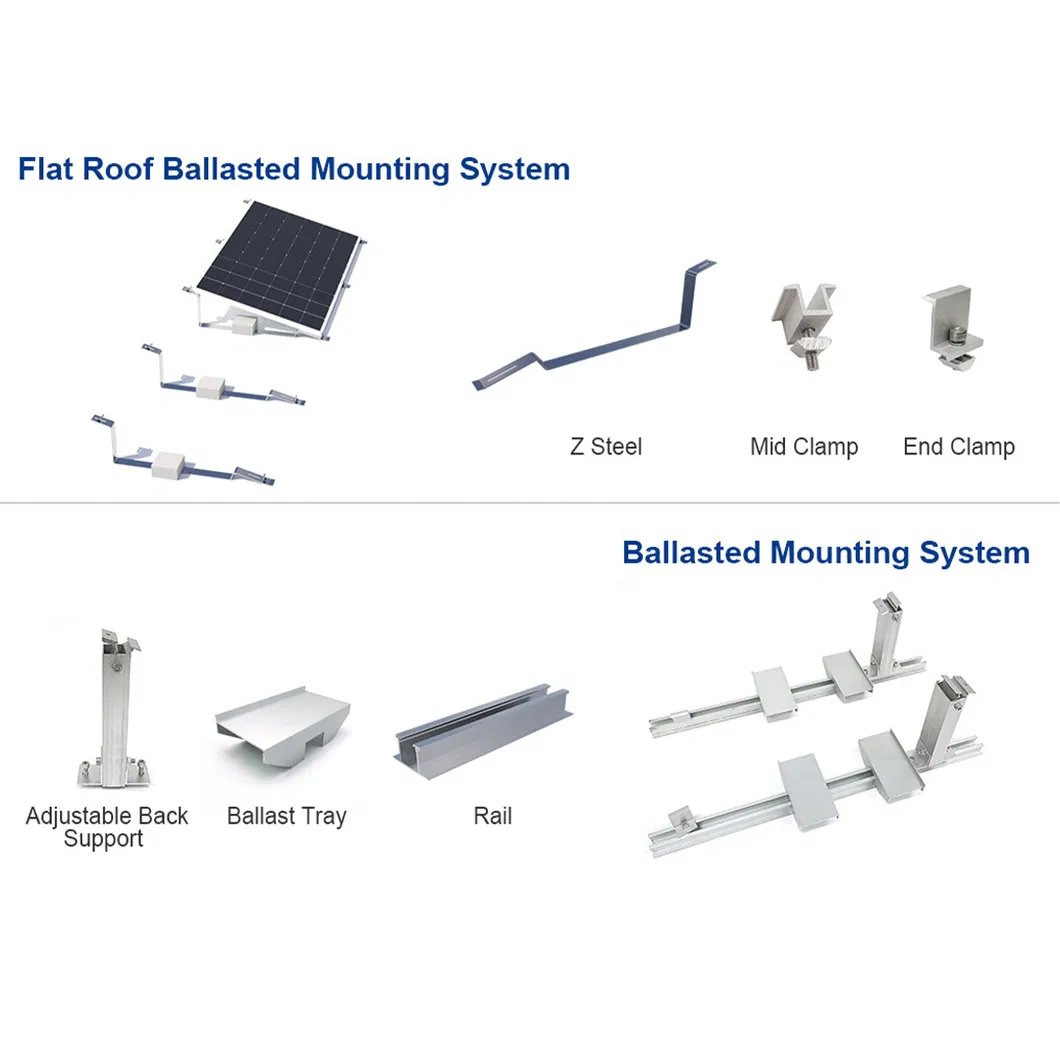

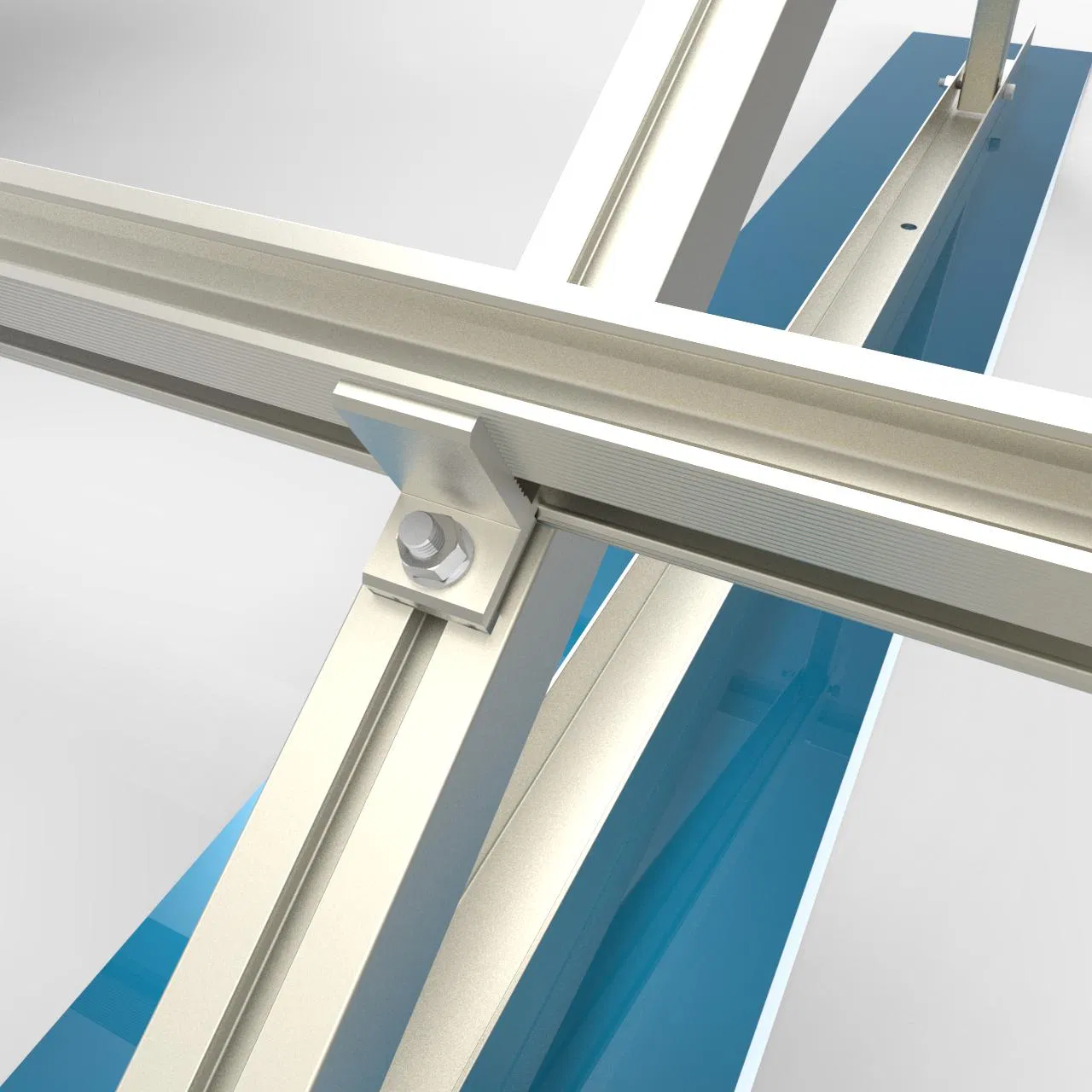

Solar Mounting System Detail 1

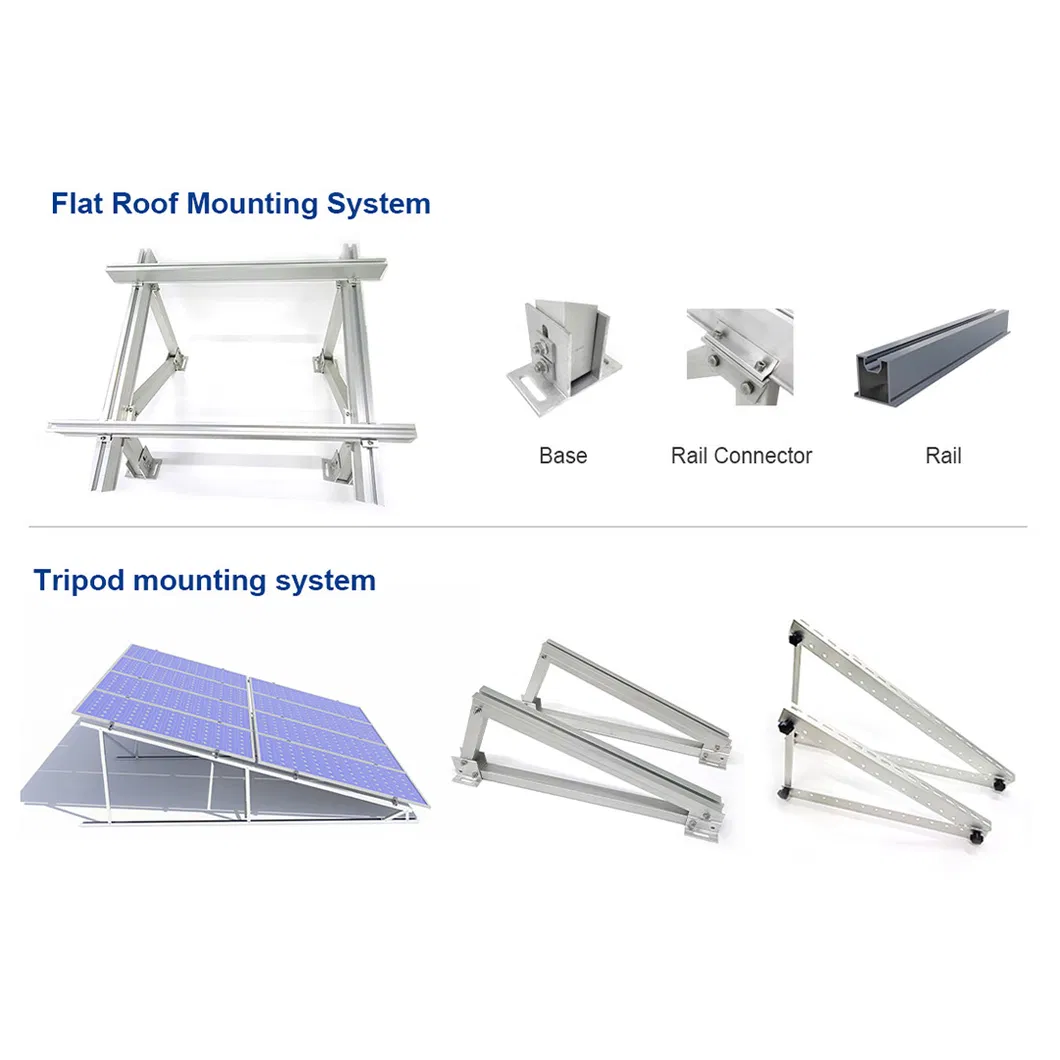

Solar Mounting System Detail 2

Our Professional Services

  • 1
    Professional Manufacturer
    Fasteners designed according to buyer specifications.
  • 2
    Quality Guaranteed
    Durability testing and critical technical design.
  • 3
    Cost Effective
    Competitive prices with professional factory supply.
  • 4
    Expert Solutions
    10 years of experience in solving fastening problems.
Production View 1

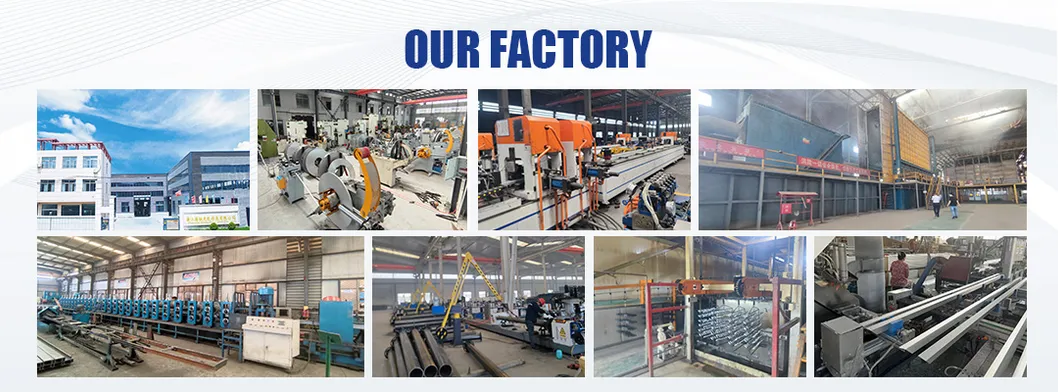

Production View 2
Production View 3
Production View 4
Production View 5

Frequently Asked Questions

What materials are used in the flat roof mounting system?
The system primarily utilizes high-grade Aluminum Alloy (AL6005-T5) and Stainless Steel (SUS304) for fasteners to ensure durability and corrosion resistance.
Can this system withstand extreme weather conditions?
Yes, it is engineered to handle a wind load of up to 60m/s and a snow load of up to 1.6KN/M², making it suitable for various climates.
Is the installation process complicated?
No, the system features a simple structure designed for convenient installation without the need for heavy hoisting equipment.
What is the standard tilt angle for the brackets?
The standard design tilt angle is between 5° and 10°, optimized for flat roof solar efficiency.
What kind of warranty is provided?
We offer a 10-year warranty on the mounting system, reflecting our confidence in the product's long-term performance.
Are the components customizable?
Yes, we provide customized services according to specific samples or drawings to meet unique project requirements.
